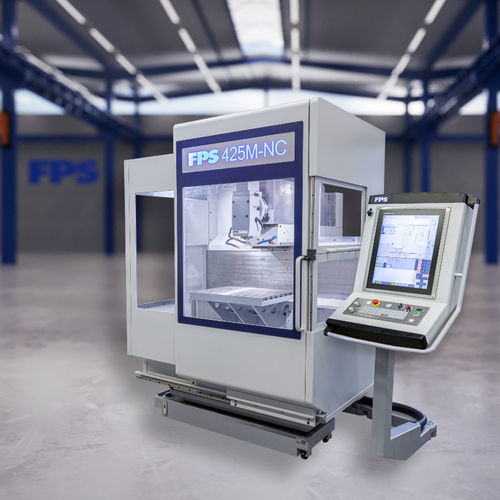

3-axis CNC milling machine FPS 425M-NC

universalwith fixed tabledrilling

The perfect entry into modern manufacturing. Solid, durable and easy to maintain – the ideal machine for use in apprenticeship and manufacturing. With variable operating speeds up to 5000 rpm – ideal for higher feed rates and higher cutting speeds. User-friendly due to an intuitive, ergonomic design. Compact machine dimensions for use in limited space. Swiveling control panel. SIEMENS ONE or HEIDENHAIN TNC 620 FS – CNC control. Milling head can also be moved further along the Y-axis - 150 mm W x D x H space - 3250 x 2300 x 2215 mm Fixed table Fixed Table/clamping surface - 630 x 470 mm T-grooves: Number / width / distance - 6 / 14H7 / 63 mm Permitted load - 350 kg Operating spindle Vertical and horizontal horizontal (optional) Vertically extending as drill spindle, with clamp/stroke - approx. 80 mm Manually rotating milling head - +/- 90° Tool holder with hydraulic tool clamping - ISO 40 DIN 69871 Tightening system Hydraulic tightening system - DIN 69872 (standard) DIN 2080 (optional) Main drive, three-phase-current brake motor Power* (100/25% Duty cycle) - 8 / 15,2 kW Torque* (100/25% Duty cycle) - 76 / 144 Nm Spindle speed - 0 to 5000 rpm (stepless adjustable) Feed drive, digital drive Feed rate, continuously variable - 0 to 10000 mm/min Rapid feed - 10 m/min Control wheel manual rotation - 2.5 mm Connection Mains connection - 3 x 400 VAC 50 Hz 25 A Max. prelim. fuse rating - 35 A Mains configuration - TN-S connection type: Fixed connection Control cabinet electronics CE-compliant in line with current regulations of professional associations - BGVA 3 / DIN EN 60204-1
