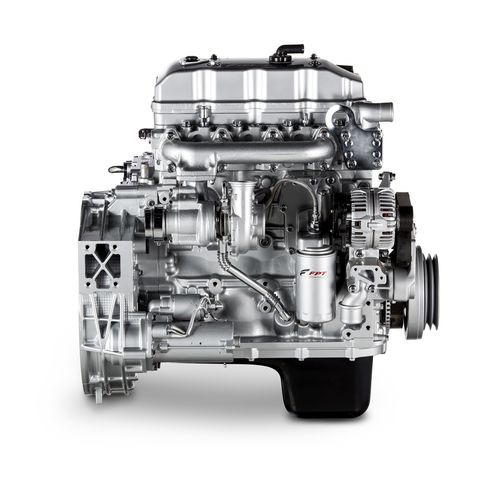

Diesel engine N45
6-cylinder4-cylinderturbocharged

diesel engine
diesel engine
diesel engine
diesel engine
diesel engine
diesel engine
diesel engine
diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder, 4-cylinder
Technology
turbocharged, common rail, in-line
Product applications
for the construction industry, power generation, for trucks, agriculture, marine
Emissions level
Euro 6
Other characteristics
4-stroke, compact, liquid-cooled
Power

118 kW, 137 kW, 152 kW
(160.435 hp, 186.268 hp, 206.662 hp)

Torque

580 Nm, 680 Nm, 750 Nm
(427.786 ft.lb, 501.5423 ft.lb, 553.1716 ft.lb)

Rotational speed

1,250 rpm, 1,400 rpm, 2,500 rpm
(7,853.98 rad.min-1, 8,796.46 rad.min-1, 15,707.96 rad.min-1)

Displacement

4.5 l
(1.189 gal)

Weight

400 kg
(881.85 lb)

Length

854 mm
(33.6 in)

Width

782 mm
(30.8 in)

Height

910 mm
(35.8 in)

Description

Trucks High reliability Reduced operating costs Exclusive HI-eSCR ATS solution Compact installation Description The NEF range is the most compact, efficient and cost-effective engine solution in the 6-8 ton truck, bus and coach category. Developed looking at the TCO, the NEF engines were conceived to maximize durability and long service intervals, and to minimize fuel consumption. In addition to road transport, they cover applications like agriculture, construction, industrial, marine and power generation. This is the best proof of their reliability and versatility. NEF EURO VI step E engines come in 4- and 6-cylinder configurations, with displacements ranging from 4.5 to 6.7 liters. Moreover, the 6.7 liter is offered in natural gas version for cleaner and cost efficient regional and urban missions. All NEF engines can be customized with optional types of oil sump, transmission, radiator, air filter and muffler. Special arrangements are provided on demand for compressor, air conditioning compressor and steering pump. ​​​​​​
