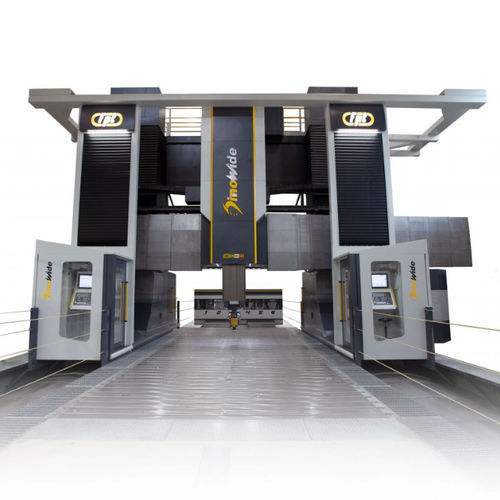

5-axis CNC milling machine / vertical / bridge / high-performance
DINOWIDE DW series

{{requestButtons}}

Characteristics

  • Number of axes:

    5-axis

  • Spindle orientation:

    vertical

  • Structure:

    bridge

  • Other characteristics:

    high-performance, high-productivity, high-precision, for large workpieces, for heavy-duty machining

  • X travel:

    6,000 mm (236 in)

  • Y travel:

    4,300 mm, 5,300 mm, 6,300 mm (169 in)

  • Z travel:

    1,500 mm, 1,750 mm, 2,000 mm, 2,500 mm (59 in)

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 30,000 rpm (188,496 rad.min-1)

  • Power:

    74 kW, 100 kW (100.61 hp)

Description

DINOWIDE can be customized with a wide range of options and solutions, following particular needs of different industries such as aerospace components, power generation parts, high accuracy machining, molds and dies.
