5-axis CNC milling machine RAPTOCUThorizontalfor aluminumgantry
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- horizontal
- Machined material
- for aluminum
- Structure
- gantry, column type
- Applications
- for the aeronautical industry, for the aerospace industry
- Other characteristics
- high-performance
- X travel
7,000 mm
(275.59 in)- Y travel
1,000 mm
(39.37 in)- Z travel
2,500 mm
(98.43 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 50,000 rpm
(314,159 rad.min-1)- Work feed X-axis
50,000 mm/min
(32.81 in/s)- Work feed Y-axis
50,000 mm/min
(32.81 in/s)- Work feed Z-axis
50,000 mm/min
(32.81 in/s)
Description
FPT Industrie SpA, for over 50 years a leading company in the manufacturing of machine tools, thanks to its experience in the production of moving column and gantry-type moving crossbeam milling and boring machines for the aeronautical sector, presents RAPTOCUT.

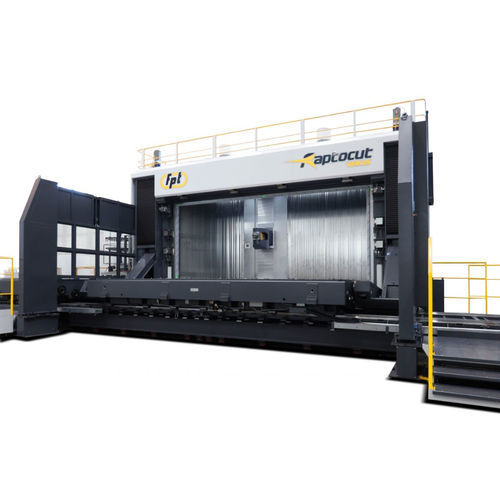

RAPTOCUT is a high dynamic, accuracy and power travelling column milling machine with lowered and symmetrical trim that, combined with a specifically studied FMS system and tilting table, is the “non plus ultra” for manufacturing bulkheads and aluminum aeronautic structural components.
RAPTOCUT, thanks to the dedicated FMS + pallet system, allow unmanned set-up of the workpieces, so that there is a fast Return Of Investment
