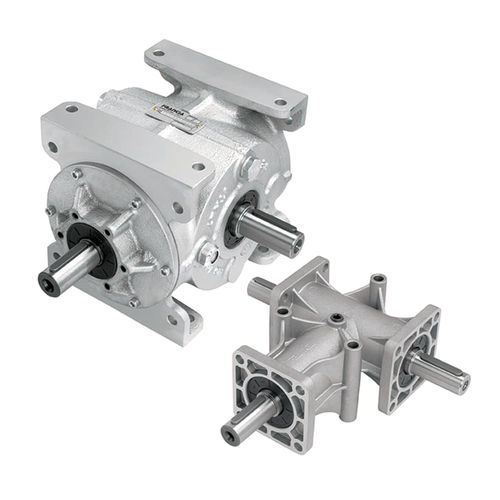

Bevel angle gearbox AG series

motor flangealuminumcast iron

We manufacture a wide range of angular gearboxes with spiral Gleason bevel gear pairs, accurate mounting for a reduced backlash with max input power of 45 Kw at 1400 rpm. Aluminum housing for small sizes and cast iron for biggest sizes. Executions at 2, 3 and 4 shafts and possibility for motor flange. Are factory filled with mineral grease (NLGI00). Gears Carburized and hardned spiral Gleason pairs with forced lapping, input speed up to 3000 min-1. Mounting position Allowed any mounting position. Housing gearbox Compact aluminum die-casting, flanges with machined surfaces. They are supplied without lubricant; it is the responsibility of the end user to enter the amount of lubricant and to arrange the plugs accordingly. Gears Carburized and hardned spiral Gleason pairs with forced lapping, input speed up to 3000 min-1. Housing gearbox Cast iron housing with machined mounting surfaces, painting Geomet 321.
