Single-phase motor

asynchronous220 V230 V

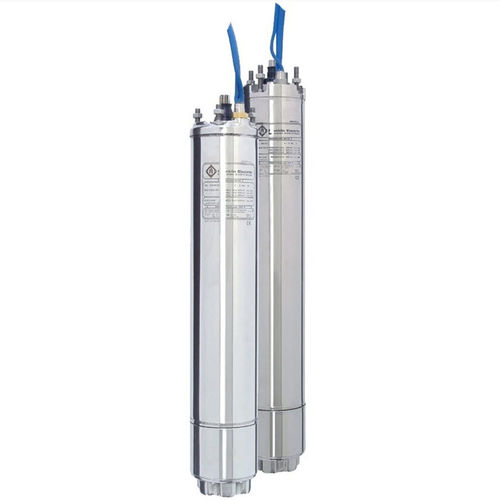

Franklin Electric 4" encapsulated submersible high thrust motors, built in ISO 9001/14001 certified facilities for outstanding performance in 4" or larger water wells. The single phase high thrust 3-wire motor has been designed for highest achievable starting torque and shaft power from 1-phase power supplies in combination with a 6500 N thrust bearing. It is therefore ideally suited for applications where starting torque is paramount and 3-phase motors cannot be used. It should ideally be combined to the Franklin Electric 3-wire control boxes for maximum system performance, protection and warranty. Standard Motor Design Specifications ■ Hermetically sealed stator. Anti track, self healing stator resin prevents motor burn out, mechanically supports the winding and provides fast heat dissipation. ■ High efficiency electrical design (low operation cost, cool running winding) ■ Removable water bloc lead plug ■ Thrust Bearing 6500 N thrust load ■ No-wear, water lubricated radial and thrust bearings for 100 % maintenance free operation ■ Non-contaminating FES 93 filling liquid ■ Max. storage temperature -15°C - + 50°C ■ Various agency approvals for use in drinking water Brackish Water Motor Version Specifications ■ For use in water that has more salinity than fresh water, but not as much as seawater. ■ The novel Franklin Electric Brackish Water Motor proposes a cost-effective solution wherever standard 4" motors are not giving sufficient service life.. ■ Thrust capacity: 6500 N ■ 4" NEMA flange ■ Rotation: CCW facing shaft end ■ Insulation: Cl.B
