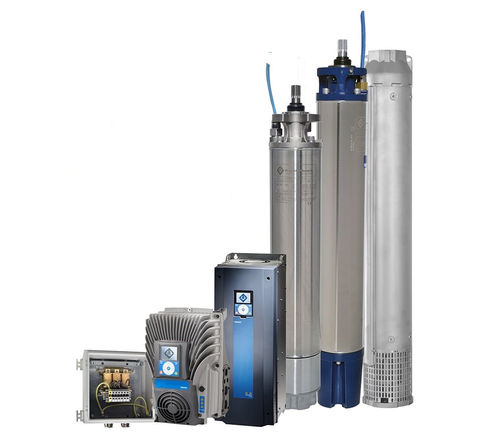

Submersible motor 6HES 380 series

synchronous3-phase380 V

System package with energy savings up to 15 % including: ■ 6" encapsulated synchronous 304SS submersible NEMA motor ■ Variable frequency drive ■ Matching output filter ■ SUPERIOR EFFICIENCY ○ Up to 15 % improved motor efficiency (system up to 11 %) with excellent partial load behaviour (SKU reduction)* ○ Due to the high motor efficiency, amps are significantly reduced, which might lead to smaller drop lead cross size and thus cost saving ○ One-stop shop and perfectly matching components guarantee first-class performance/efficiency ○ Power factor corrected input (No power compensation needed) ○ Significant lower motor heat rise (Increased lifetime) ■ EASY INSTALLATION ○ Easy system set-up due tailored pre-settings, user interface and own Franklin Electric software ■ INCREASED LIFETIME ○ Incorporated Soft start and protection features (no additonal investment) ○ Speed control (Optimum aggregate operation - pump matches system any time) ■ CONNECTIVITY ○ Communication ModBus (RS485 and Ethernet) ■ FULLY SUPPORTED ○ Fully technical support ○ Professionals and Field Service Engineers ■ System Power Supply: 380 - 400 / 460 V ± 10 % ■ System Supply Frequency: 50/60 Hz ± 6 % ■ Motors installation orientation: Vertical / horizontal (shaft end heightened) ■ Protection: ○ motor: IP68, insulation class F ○ drive: IP66/54/21 ○ filter: IP54/00
