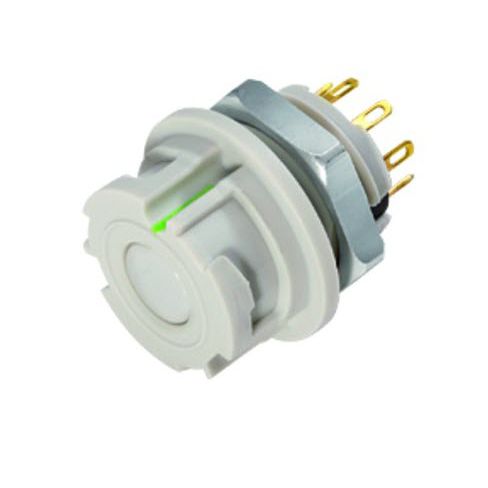

Data connector 770 MED serieselectrical power supplycircularfemale
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- circular
- Connection type
- female, bayonet
- Material
- polyamide
- Domain
- for medical applications
- Protection class
- IP67
- Other characteristics
- panel-mount
- Primary current
2 A
- Voltage
175 V
Description
Bayonet NCC Female panel mount connector, Contacts: 8, unshielded, solder, IP67
Connector design - Female panel mount connector
Version - Connector socket straight
Connector locking system - Bayonet
Termination - solder
Degree of protection - IP67
Cross-sectional area - 0.25 mm² / AWG 24
Temperature range from/to - -25 °C / 85 °C
Tightening torque screw nut - 0.8 Nm
Mechanical operation - > 5000 Mating cycles
Weight (g) - 4.32
Customs tariff number - 85369010
