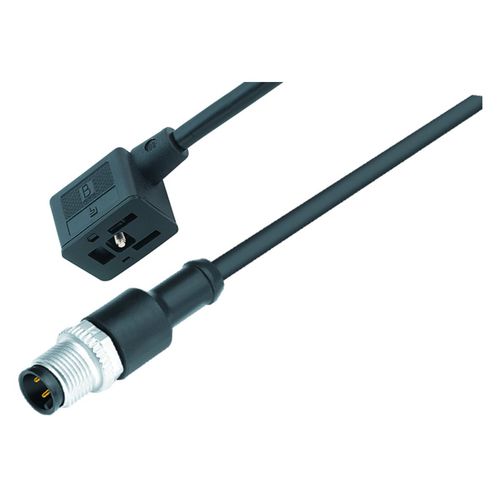

Data connector 220/B seriescircularmaleM12
Add to favorites
Compare this product
Characteristics
- Type
- data
- Shape
- circular
- Connection type
- male
- Size
- M12
- Material
- polyamide
- Product applications
- for solenoid valves
- Protection class
- IP67
- Primary current
4 A
- Voltage
60 V
Description
Connector locking systemcentral bolt
Terminationscrew clamp
Wire gauge (mm)0,75 mm²
Wire gauge (AWG)20
Cable length1 m
Degree of protectionIP67
Mechanical operation> 50 Mating cycles
Upper limit temperature85 °C
Lower limit temperature-20 °C
Rated impulse voltage4000 V
Pollution degree3
Overvoltage categoryII
Insulating material groupII
Volume resistivity≤ 15 mΩ
Insulation resistance≥ 10¹⁰Ω
Contact materialCuSn (bronze), CuZn (brass)
Contact platingSn (tin)
Contact body materialPA
Housing materialPC
Cable data
Sheath materialPUR
Single-lead insulationPVC
Single-lead structure24 x 0,2 Cu
Cable diameter6
Conductor resistance26Ω/Km
Temperature range, moving cable, °C from-5
Temperature range, moving cable, °C to70
Temperature range, fixed cable, °C from-20
Temperature range, fixed cable, °C to70
Bending radius, fixed cable30 mm
Bending radius, moving cable60 mm
Customs tariff number85444290
Weight (g)85
