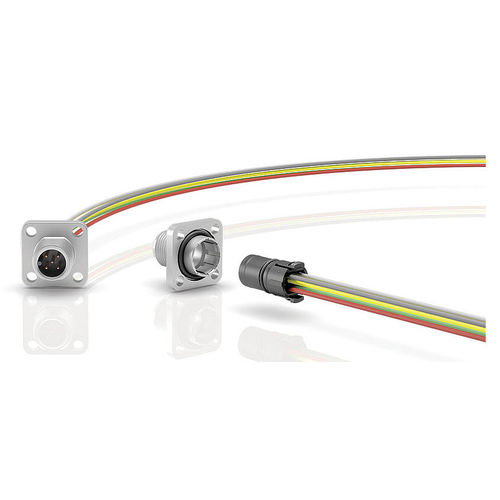

Electrical power supply connector 763 seriessquarecircularmale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- square, circular
- Connection type
- male
- Size
- M12
- Domain
- fast
- Protection class
- IP68
- Other characteristics
- panel-mount
- Primary current
1.5 A, 2 A, 3 A, 4 A
- Voltage
30 V, 60 V, 250 V
Description
Square flange consisting of a separate housing and contact carrier
Separate processing of housing and wires for subsequent mounting possible
AWG24/7 wires ensure a fast and easy (direct) processing
Different cable outlet directions for angled connectors are possible due to the variable positioning of the coding
Available from 11/17 on
Series763
Contacts4, 5, 8
CodingA
ThreadM12
Rated current4 A (3 A UL), 1,5 A (2A UL)
Rated voltage250 V, 60 V, 30 V
Degree of protectionIP68 in mated condition
Contact platingAu (gold)
Terminationsingle wires AWG24/7
