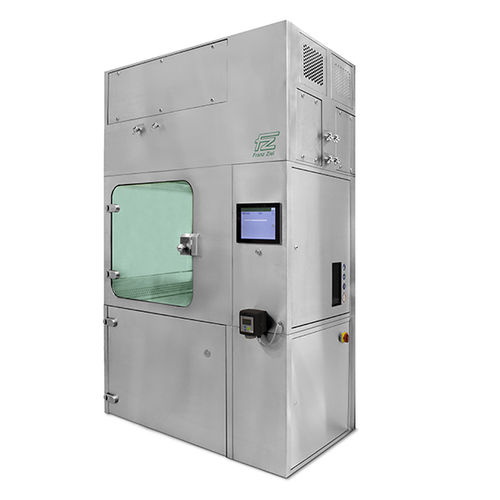

Pass-through RDH-WI

Product Description Rapid Decon Hatch enable the sterile transfer of material into cleanrooms. The material is decontaminated with vH2O2 (vaporized H2O2) in the airlock by means of the integrated Bio-Decontamination-System 'FZ-BDS 12/60'. The integrated LAF recirculation system guarantees the pressure cascade between the rooms and sterility is ensured also after the gassing process. All safety-relevant functions are constantly monitored electronically Technical Details RDH-WI Rapid Decon Hatch •Fully welded stainless steel housing in a single-wall construction and return air ducts •Interlocked, electrically monitored safety glass airlock doors with negative pressure-controlled, pneumatic seals •Transfer system within the airlock for the inward and outward transfer of materials •Laminar air flow recirculation system and positive pressure control by means of supply and exhaust air units •Gas-tight, electrically operated butterfly valves on the supply air and exhaust air side •Integrated Bio-Decontamination-System „FZ-BDS 12/60“ with vH2O2 directly injected (DIS = direct injection system) below the fabric frame for an effective and stable decontamination process with short cycle times •Cycle time: approx. 30 minutes •Integrated catalysts for flushing after vH2O2decontamination (no connection to the on-site ventilation system required) •Automatic pressure decay test •Leakage rate: 2 vol%/h •LED lighting •Integrated PLC control system (Siemens S7-300) with 12“ touch panel (B&R) •Panel printer for the recording of process data •Technical documentation according to the Machinery Directive •Qualification documentation •GMP-/FDA-compliant design
