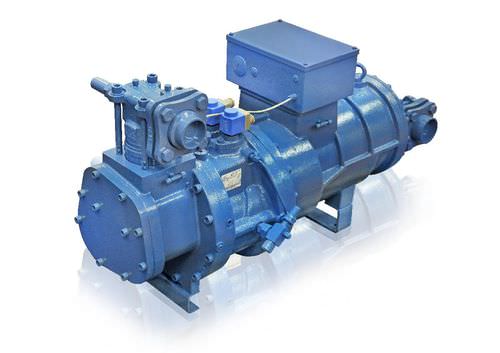

Twin-auger compressor RTSL-40-150Y

airelectrically-poweredstationary

twin screw compressor with integrated part winding start (PWS) electric motor and ptc probes connected to the protection system. •PWS (Y/YY) = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph) •DOL (YY) = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph) - electronic monitoring and protection module (temp0erature, phase sequence, rotation direction) - suction and discharge valves - Oil water cooling - Integrated check valve - capacity control and idle start system - IP56 electrical connections box - discharge temperature control sensor - oil injection kit (control module, oil filter, flow meter, solenoid valve, glass sight) - rubber supports - protection charge (inert gas 1 bar) - appropriate packaging for transport, handling and storage Option - electric motors for various voltage supply values - ECO connection kit or liquid injection - differential pressure switch for (electronic) oil filter clogging - differential pressure switch for (optical) oil filter clogging - DOL connection bars - oil separator kit (separator, thermostat, heating elements, level control) - Air oil cooler - Water oil coller - lubricating oil
