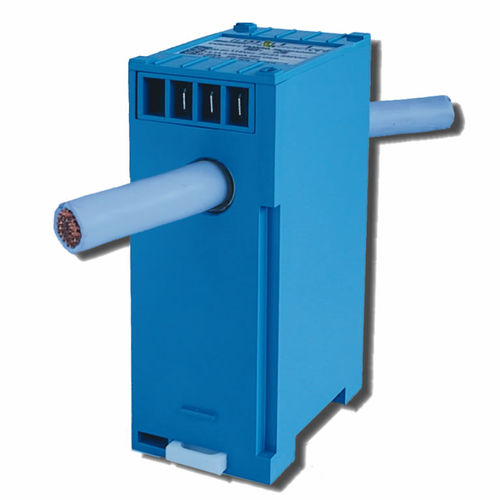

Transformer current transducer MCOAD1

DIN railACRS-485

AC Current Transducer with integrated CT Input values from 5A to100A Active output (4-wire technology) or RS485 Modbus RTU output • accuracy class 0,5 • input range 0...120% In • response time <200msec • residual ripple <1%p.p. • continuous overload 2 ln • short-time overload 20 ln (1sec) • reference frequency 45÷65 Hz • current circuits consumption <0,5VA • operating temperature –10...0...+45...+50°C • storage temperature –30...+70°C • self estinguishing thermoplastic material UL 94-V0 • overvoltage category CAT III 300V, CAT II 600V P.D. 2 • according to EN 60688
