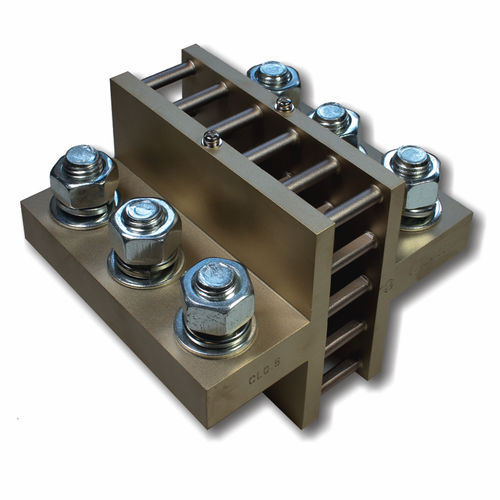

Brass shunt SSHMA series

DC Shunt • accuracy 0,5% • standard standard voltage drop 60mV • on request 100mV - 150mV • temperature coefficent 0,002% / °C • rod material manganina / manganin overloads: • continuous 1,2In • up to250A 10In for 5 sec. • from 251 to 2000A 5In for 5 sec. • from 2001 to 10000A 2In for 5 sec. • operating temperature -25 +60 °C • storage temperature -40 +80 °C • dimensions according to DIN 43703 • electrical and safety characteristics IEC/EN60051 • norme according to DIN43780 • Screw and washers for mV M5x10
