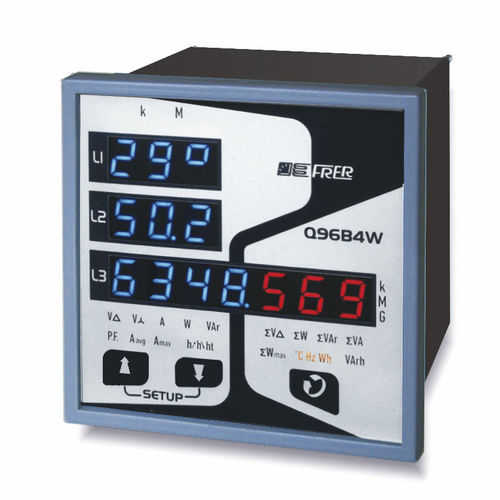

electrical network analyzer / power quality / for integration / digital
Q96B4W, Q15B4W

{{requestButtons}}

Characteristics

  • Measured entity:

    for electrical networks

  • Measured value:

    power quality

  • Configuration:

    for integration

  • Other characteristics:

    digital

Description

DESCRIPTION
Multifunction meter, suitable for three-phase three or four wires systems with unbalanced
load, even with distorted waveforms. It allows the visualization of all the main characteristic
variables of an electric network (16 variables, 32 measures) on a single unit, greatly
reducing the complexity and the costs of installation.
In addition the following options are avaiable: communication data interface, 2 alarm
outputs alternatively programmable as pulse outputs for active and reactive energy retransmission.
DETAILS
LED
QUICK DELIVERY
Technical data
display display LED 4 (h 10mm)
max.indication 3 cifre - 3 digits (999)
decimal point position automatica - automatic
status LED’s simboli luminosi - lighted symbols
readings update 1 sec
measuring type TRMS
basic accuracy ±0,5%
Un nominal input voltage Un 100÷400V
In nominal input current In 1-5A
input range (1)
10÷120% Un; 5÷120% In
operating frequency 45÷65Hz
VT ratio (max. primary value) 1000kV
CT ratio (max. primary value) 10000A
continuous overload 1,2 Un; 2In
short-time overload 2 Un; 20 In (1sec)
voltage circuits consumption <0,5VA
current circuits consumption <0,5VA
operating temperature -10...+23...+50°C
storage temperature –30...+70°C
self estinguishing
thermoplastic material UL 94-V0
protection for housing IP52
protection for terminals IP20
galvanic insulation completo - full
overvoltage category CAT III 300V, CAT II 600V, P.D.2
energy counting kWh - kVArh
maximum counting 9999,99 GWh/GVarh
accuracy class 2 (Wh), 3 (Varh)
bidirectionality no
