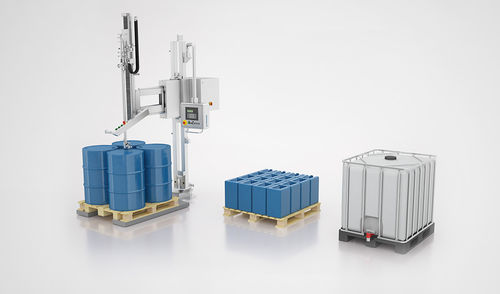

Semi-automatic filling station FFS 41

IBCpallet drumjug

A filling station with electronic scale for the filling of viscous to pasty liquids e.g. paints. varnishes or dispersions, adhesives, bitumen. For the filling of open containers (min. Ø 150mm opening) just above fill level, e.g. canisters, open lidded drums or IBCs (Intermediate Bulk Container), directly on the pallet. above level filling coarse/fine. Product feed from higher lying storage tanks via natural slope or with the help of pumps. Direct connection via product hoses to the valve. The System offers you: ■ - calibratable above tevel filling just above the fill level with a ride-on valve of several containers on one pallet ■ - fast and easy valve cleaning (the produkt contact area is made of 3 parts) ■ - a rapid changeover to other container sizes and changing products ■ - simple operation by one person ■ - handling of empty containers (lifting heavy loads (filled containers)) not applicable ■ - automatic height adjustment and automatic change of position
