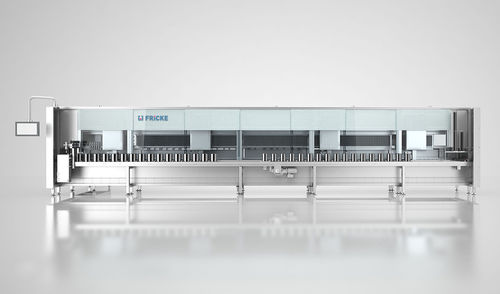

Powder dispensing system CONCORDIA I

laboratoryautomated

Dosing systems for laboratory and small scale production mixes up to 6 kg batch size The Concordia I (C1) is the flexible solution for laboratories with production possibility and it is applicable for liquid and powder dosing for batch sizes up to 6 kg. Space-saving this system combines all advantages of a laboratory dosing system to the production capacity of the greater systems Concordia II – V (C 2 – 3). ■ - batch sizes up to 6 kg ■ - more than 130 fully automatic mixing recipes during the unattended night shift ■ - 7000 dosing cycles per day ■ - dosing précision on the 6 kg scale: ±3 mg ■ - smallest dosable quantity on the 6 kg scale: 5 mg ■ - modular design for up to 1000 components ■ - barcode assisted dosing ■ - high dosing speed through parallel dosing on several scales ■ - individual container transport Systems ■ - various raw material storage Systems Pours per day:7000 Accuracy:± 3 mg Max. batch size: - up to 6 kg Min. pour size:5 mg Atex Zone:1
