Reflow soldering machine MRO160
PC-controllablefor PCB

reflow soldering machine
reflow soldering machine
reflow soldering machine
reflow soldering machine
Add to favorites
Compare this product


Operating mode
for PCB

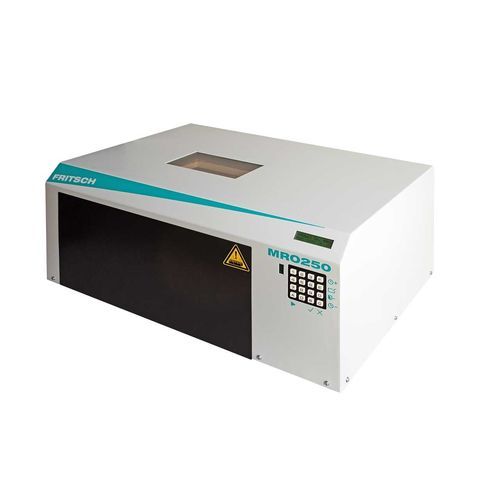

FRITSCH combines easy handling with low costs in the batch solder system. The user-friendly surface enables the individual programming to reduce setup-times to a mnimum. It doesn't matter wether prototyping or serial production: The batch systems are the perfect solution for daily work. The difference between the MRO250 an MRO160 is very small. Scope of application, operation and software are nearly identic. The dimensions of the MRO 250 which is 100 mm longer and the possibility to handle larger PCBs up to 350 x 250 mm are the definitive factor. The main feature of the batch solder system MRO160 is the easy operating. Only after few steps the user is able to start production. This is an advantage for prototyping because of low costs. The MRO160 solders PCBs up to 200 x 160 mm and is removable without any problems by means of the small weight and dimensions. The Convection Reflow Solder System has a drawer unit for accepting Printed Circuit Boards on individually adjustable supports which are held in place by magnetic feet.The low mass and small contact area of the supports contribute to uniform heating of PCBs. A microprocessor fully controls the heating process and ensures reliable and reproducible results. Programming and operation is carried out from the clearly arranged keyboard. All data entered by the user and essential information for the operation of each process is shown on the two line LCD display. Operating is made quick and easy by a menu system. Each temperature profile has a four digit number allocated to it which is used for storage and retrieval. There are 9999 memory locations aviable for saving profile parameters.



20 Pages
