lithium-ion battery charger / portable / single-phase

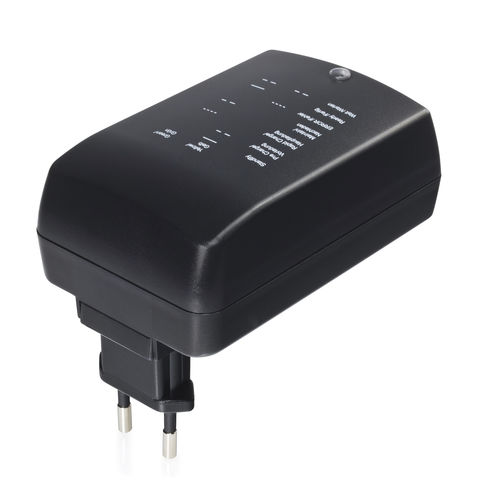

Product information "GPP36 Chargers Li-Ion"
Switchmode chargers for Lithium-Ion systems. All products conform to IEC 60335 and IEC 60601-1.
The GPP-series can be variably equipped with the mains plugs as shown. Your applications and products can be sold and used worldwide due to the set of all country mains plugs which can be inserted with the unit. Mobility and dependability with respect to the use of the product are increased in this way and provide a constant level of functionality and availability – wherever you are in the world. Beyond that, these plug modules help reducing the logistic complexity, avoiding the need to plan and stock mains adapters and chargers in various mains plug configurations. In countries with mains plugs which are not covered by EURO, UK, USA/Japan and Australia mains plug types, the IEC adapter with the 2- pin IEC 320 C8 socket provides a standardized alternative.
•Output voltage: 3.6
•Spec.0 cover sheet FW-Type: FW7300/Lion 1cell
•Input voltage: 100-240 V
•Input tolerance: ±10%
•Protection Class: II
•Input current: 0.18-0.45 mA
•AC Input: FRIWO interchangeable mains plug system: see Primary Adapters
•Standard 1: IEC60601-1
•MTBF: 200.000h acc. Mil217F (based on calculations at
120Vac/60Hz & 230Vac/50Hz, ambient 25°C
and 100% load) (The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic ) h
•Storage temperature: -40°C - 70°C
•Working temperature: 0°C - 40°C
•Humidity: 5% to 95%
•DC output: Lead with texas plug 3 pin
•Output voltage tolerance: +10% / -10%
•Frequency: 50 / 60 Hz
