Articulated robot HORST600
6-axishandlingfloor-mounted

articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
handling
Mounting
floor-mounted, ceiling-mounted, wall-mounted
Application domain
for medical applications, for the plastics industry
Protection level
IP54
Other characteristics
compact
Payload

3 kg
(6.614 lb)

Reach

584 mm
(22.99 in)

Repeatability

0.05 mm
(0.002 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: 5 °C
(41 °F)

Weight

30 kg
(66.1 lb)

Description

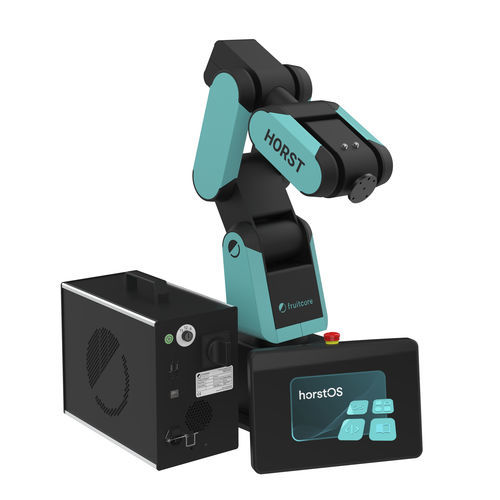

HORST600 combines easy operation and performance with compact design. This allows optimal maneuverability in the largest possible workspace and offers you maximum flexibility. HORST can do it. Compact, fast, and precise. HORST is the ideal choice for the metal and plastics processing industries, medical and testing industries and is highly versatile. Simplicity and performance, as well as industry-specific features, make HORST600 your robot of choice. The HORST600 robot system comprises the 6-axis industrial robot HORST600, the switch cabinet horstCONTROL, as well as the robot operating panel horstPANEL and our operating software horstFX basic. Whether floor or ceiling, HORST600 can be installed exactly to your requirements and is highly versatile. With a weight of around 30 kg, it is lightweight and with a repeatability of +/- 0.05 mm extremely precise. HORST600 is ideally suited for handling a wide variety of components in a wide range of applications. All our robots are made in Germany. This means for you: high-quality Digital Robots and increased efficiency for your production processes.Not the right features? See all robots. Your advantages with our Digital Robot Simple operation Optimal cost-benefit ratio for your application Can be used in almost all industrial sectors Digital Robots: simplicity through connectivity at all stages of life – from inital installation and connection to operation, maintenance, and repair. Little space required, large workspace High repeatability

VIDEO
