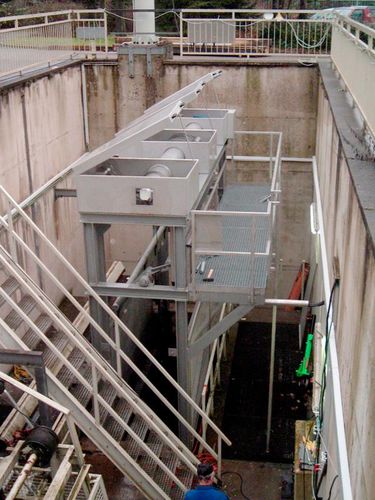

Bar screen

bar screen
bar screen
bar screen
bar screen
Add to favorites
Compare this product


bar, screw, rotary, belt
for wastewater treatment


The FSM coarse bar screen has been in operation all over the world for over 30 years. Parallel to the increasing demands of users, FSM introduced modifications to the basic design. These have resulted in an optimum product for coarse cleaning of waste water -providing high performance coupled with low operating costs. The FSM coarse bar screen thus offers ideal protection for pumping and fine screening installations. The Grab bar screen is a coarse screen in extremely robust design and width and use in water and waste water treatment predominantly thought. Functional principle: The waste water flows through a bar screen made of steel or stainless steel, while screenings are held back. Solid matter is picked up by our special grab directly at the bottom of the channel without the need for a base step. The teeth of the grab act between the bars of the screen thus preventing jamming of the screenings. A pivoting scraper discharges the screenings into a container, wash compactor, screw conveyor, conveyor belt etc. Opening and closing of the rake is achieved by a drive or a guide track. The position of the rake is controlled by a rotary selector switch. Thereby different positions on the screen field can be reached by the rake. For digger operation the rope is controlled by a slack rope weight.
