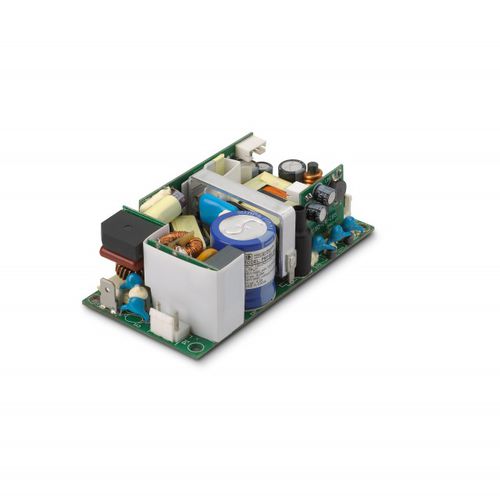

AC/DC power supply FSP150M-K24-12

single-outputwith short-circuit protectionfor printed circuit boards

Feature • Certified Medical Safety IEC 60601-1 • Input Voltage Range 90-264 VAC • Low Leakage Current • Operating Altitude 5,000M • Power Factor 0.98 • Over Voltage/ Over Current/ Short Circuit/ Over Temperature Protections • Compliant with RoHS requirement Introduction This product is Class I open frame, PCB constructed in a package of 2 × 4 × 1.29 inch, which output voltage is 12V and maximum output power is 150W at 7.5 CFM forced air cooling or 100W at convection cooling. The unit approved medical safety and certified EMC medical standard, and is designed for medical applications.
