double-conversion UPS / parallel / three-phase / server
Mplus

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

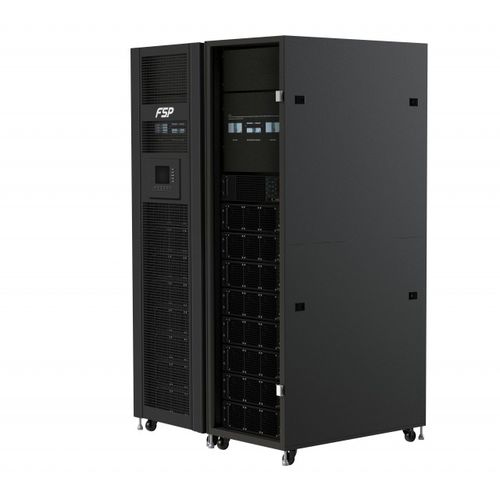

double-conversion UPS double-conversion UPS - Mplus
{{requestButtons}}

Characteristics

  • Type:

    double-conversion, parallel

  • Electrical characteristics:

    three-phase

  • Applications:

    server, for server rooms

  • Other characteristics:

    modular, redundant, adjustable

  • Power:

    Min.: 30,000 W

    Max.: 300,000 W

  • Input voltage:

    Min.: 305 V

    Max.: 478 V

  • Output voltage:

    Min.: 380 V

    Max.: 415 V

  • Output power kVA:

    Min.: 30 kW (40.79 hp)

    Max.: 300 kW (407.89 hp)

Description

Feature
•N+1 or N+R Parallel Redundancy for power guarantee
•Modular design decreases MTTR
•High scalability
•Built-in maintenance bypass switch for easy maintenance without interruptible
•High efficiency double conversion online UPS
•Adjustable battery numbers
•Adjustable charging current
•Graphic 5.7'' LCD design for easy configuration
Introduction
True double conversion online UPS. Modular design, scalable & reliable.
