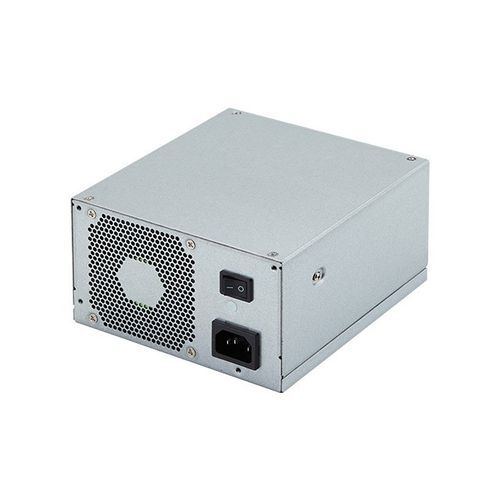

Switching power supply FSP600M-70PB
AC/DCregulatedwith overcurrent protection

switching power supply
switching power supply
Add to favorites
Compare this product

Go to the FSP Technology Inc. website for more information

Characteristics

Type
AC/DC
Output
regulated
Technology
switching
Protection
with overcurrent protection, with overload protection, with overheating protection
Certifications
TUV
Features
closed frame
Applications
for medical applications, for PC
Other characteristics
ATX
Input voltage

Max.: 264 V

Min.: 90 V

Output voltage

3.3 V, 5 V, 12 V

Current

Max.: 30 A

Min.: 0 A

Power

600 W

Description

This series of AC/DC switching power supplies in a standard ATX form factor 165 x 150 x 86 mm, is capable of delivering 600 or 700 watts of continuous power. PSU build-in DC/DC converter at +3.3V and +5V output rails to enhance load regulation. High-efficiency design complies with 80PLUS GOLD efficiency and intel power supply design guide ATX version 3.0 multi-rail 2.0. PSU is suitable for medical PC and related applications. Feature PS2 form factor 165 × 150 × 86 mm High attitude 5000 meters operation
