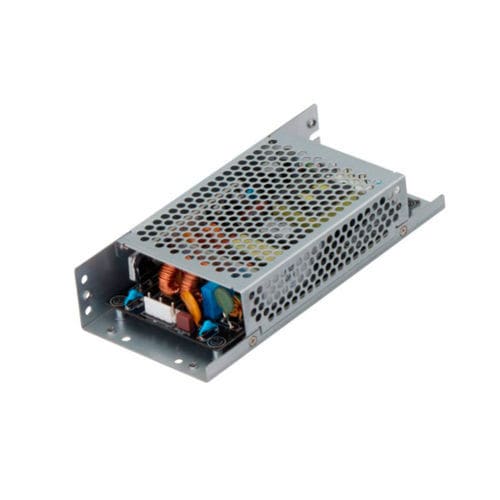

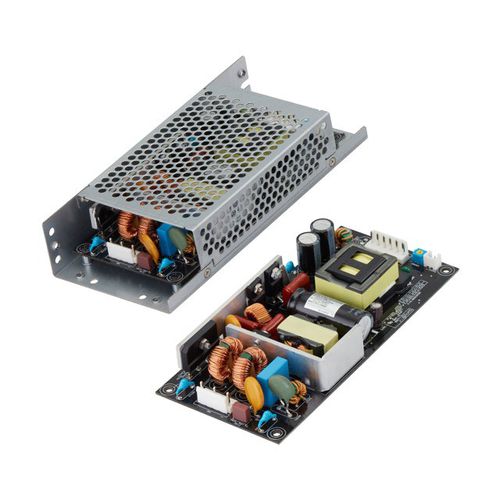

Open frame power supply FSP150-P37J-A24
AC/DCswitchingfor printed circuit boards

open frame power supply
open frame power supply
open frame power supply
Add to favorites
Compare this product

Go to the FSP Technology Inc. website for more information

Characteristics

Type
AC/DC
Technology
switching
Mounting
for printed circuit boards
Certifications
CE
Features
open frame, low-profile
Applications
for industrial applications
Other characteristics
with power factor correction (PFC), high-performance, isolated
Input voltage

Max.: 264 V

Min.: 85 V

Output voltage

Max.: 48 V

Min.: 12 V

Current

Max.: 12.5 A

Min.: 0 A

Power

150 W

Description

This series AC-DC switching power supply is Class-I design which is with Protected Earth. The units are constructed on a printed circuit board in a 2.95 x 6.3 x 0.988 inches form factor low profile. Input power less than 0.5W is suitable for end products that have standby mode requirements. PSU is capable of delivering 150 watts of continuous power at convection cooling and 50℃operation temperature. They are suitable for industry and information applications. Feature PFC build-in Low input inrush current High efficiency EN55032 Level B emission Input power < 0.5W at 0.2W load 2K Vac isolated between PE and RETURN
