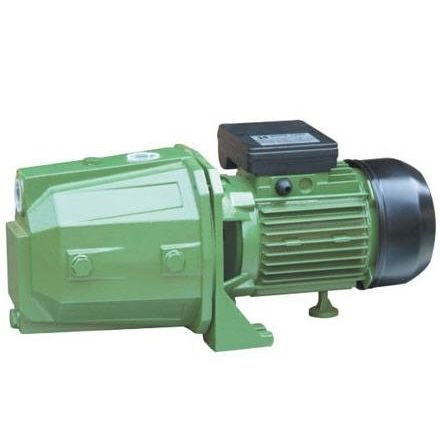

Centrifugal pump JET-P/JET-100A serieswaterelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Domain
- industrial
- Flow
62 l/min
(16.37867 us gal/min)- Pressure
10 bar
(145.038 psi)- Head
68 m
(223'01" )
Description
OVERVIEW
JET-P series self-priming pumps are high efficeient jetting pump with excellent suction even when there are air bubbles.
The pump is consists of a single impeller, centrifugal pump and a nozzle with a jet pipe.
The series pumps are particularly suitable for water supplying in domestic in stallations, small-scale a griculture watering and where self -priming operation is demanded .
PERFORMANCE AND WORKING LIMITS
- Capacity up to 62 l/min (3.7 m3/h)
- Total Head up to 68 m
- Max. Suction lift up to 9 m
- Max. Pressure 10 bar
