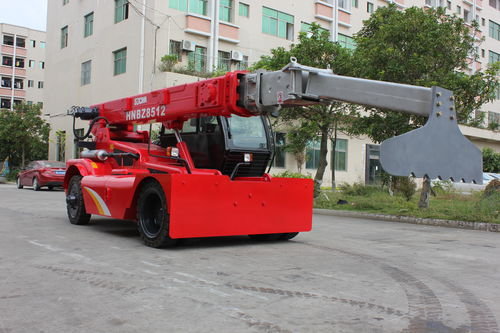

Telehandler HNBZ8512

This product is designed for the cleaning of slag which are generated in the smelting and holding furnaces during the metal smelting process. HNBZ8512 is a multipurpose wheel type telescopic slagging truck, with three-section telescopic boom, the maximum lifting height 3200mm, the slag power is biggerr than 10KN, the maximum extension distance 8500mm, all the slag action is operated through hydraulic pilot. It is very suitable for smelting furnace and holding furnace slag, stirring and clearing furnace. 1, Adpot Donefeng CUMMINS turbocharge diesel engine, China stage III emissions, power strong, energy saving and environmental protection, meet the efficient working requirements. 2, Adpot fixed - shaft type hydraulic transmission, the traction force of the combined condition is large, and the double-variable system is more reliable. Twin-turbo hydraulic torque converter stepless speed change; single-lever control transmission system, two forward and two backward gear shift, operation is easier. 3, Adopt dual-pump confluence working hydraulic system, a significant reduction in fuel consumption and energy consumption. 4, Adopt full hydraulic coaxial flow amplification steering system, the turning radius of rear axle is small, steering light and flexible. 5, Adopt front wheel drive, rigid suspension, rear axle steering structure. The front axle spiral bevel gear and the wheel side planetary gear increase toqrue, big load capacity. The rear axle adopts the transverse hydraulic cylinder type steering mechanism, which is helpful to reduce the steering resistance, reduce the tire wear and improve the ride comfort.
