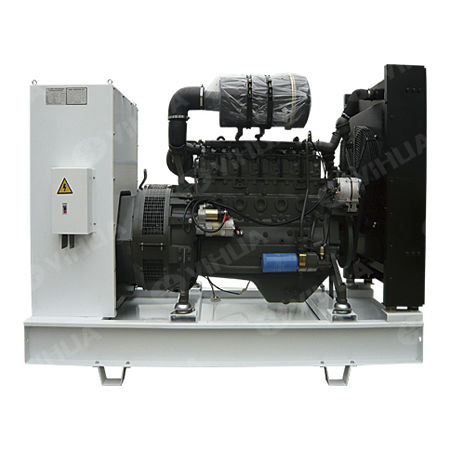

Diesel generator set DEUTZ Series
single-phasestationary50 Hz

Add to favorites

Compare this product

Go to the Fujian Yihua Electrical Machinery Co., Ltd. website for more information

Characteristics

Motor type

diesel

Phase

single-phase

Portability

stationary

Frequency

50 Hz, 60 Hz

Fuel System

mechanical fuel injection

Cooling system

air-cooled

Applications

marine

Options and accessories

open type

Power in kVA

Max.: 140 kW
(190.35 hp)

Min.: 20 kW
(27.19 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Noise level

Max.: 75 dB

Min.: 63 dB

Description

DEUTZ Series Diesel Generator Sets Technical Data YIHUA-DEUTZ series diesel generating sets, power coverage from 22KW to 120KW, adopt DEUTZ 226B series engine,which are made by Sino-Germany Joint-venture Company in China. 226B series have been used and tested thousands of times in various mechanical and marine fields. advanced technology, high reliability, long time service, low vibration, low noise, small measurement and light weight. Low running cost. Power coverage from 20kw~140kw Model: GF: Open type &GFS: Soundproof /Silent/Supper silent type Engine: DEUTZ Speed: 1500/1800rpm Alternator: Stamford /Leroysomer /Marathon/ABB/YIHUA YHG IP &Insulation Class: IP22-23 &F/H Frequency: 50/60HZ Controller: Deepsea/Comap/Smartgen/DKG/Others ATS System: Smartgen/ABB/SOCOMIC /Others Silent&Supper silent Gen-set Sound level: 63-75db(at 7m side)
