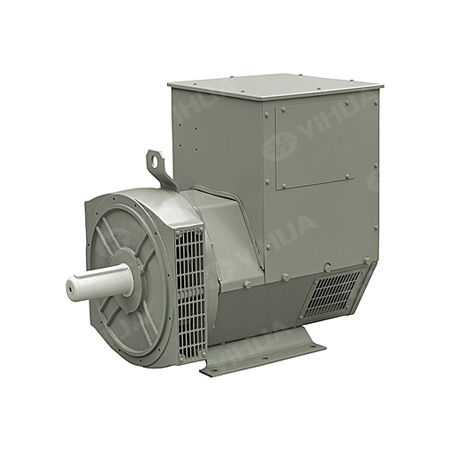

Three-phase alternator YHG Series

brushlessgenerator

YIHUA YHG Series Brushless Three-phase A.C.Sychronous Generators Technical Data MECHANICAL SPECIFICATION Steel frame Cast iron cover Excellent silicon steel chip Import ball bearings Mounting type: Single bearing with standard SAE connection and SAEdriving chip. Double bearing with standard shaft extension and flange connection cover. ELECTRIC PERFORMANCE The voltage adjust for 110V、220V、400V、480V etc .The frequency is 50Hz/60Hz.It is adopted with brushless exciting system. Insulation class:H; Protection class:IP22~23; Steady-state voltage regulation rate≤±1%;Transient-state voltage≤ ;The line voltage waveform distortion rate≤5％;Voltage adjust range≥±10%UN: Ambient temperature≤±40℃;Altitude≤40℃;Altitude≤1000m; Air relative humidity≤90％.
