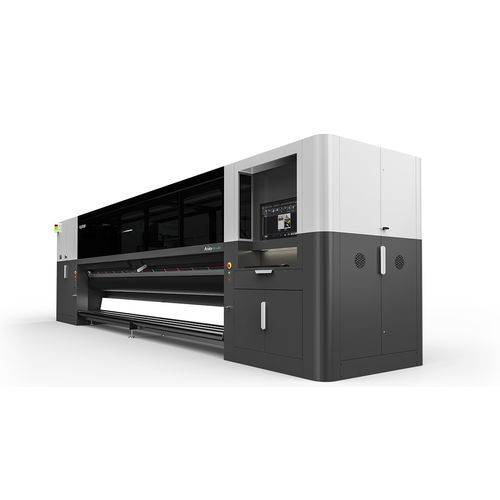

Inkjet large format printer R2

UV inkjet6-colormulti-color

Overview
Roll-to-roll superwide format industrial inkjet printer for indoor and outdoor graphics. Balances print quality, production speed and cost‑in‑use; available in 3.2 m and 5 m widths with multiple color configurations and LED UV ink options.

Industrial print quality
Industrial grayscale printheads with a 3.5 picoliter drop size combined with specially formulated LED UV inks deliver consistent, high-resolution output suitable for close-view indoor displays and large outdoor signage.

Applications
Suitable for single billboards, signage, exhibition graphics, POS displays, backlit displays, high-end indoor graphics and large-format graphic art, enabling entry into premium display markets.

Versatility and media handling
2- or 3-up multi-roll capability, support for media thickness from 0.1 to 2.0 mm, and a chilled vacuum table for thin heat-sensitive substrates. Compatible with a wide range of flexible and backlit materials; LED curing versions available for additional workflow options.

Productivity and workflow features

• Print speeds up to 402 m2/hr (4,327 ft2/hr)
• Color configurations: 6-color (CMYK LcLm), 6-color + white/varnish (WW), 2 × CMYK
• On-board backlighting for image checking during printing
• Automatic nozzle spitting system and very quick startup for stable production

Operation and maintenance
Designed for efficient job setup, easy monitoring of print status and simplified daily maintenance to maximize uptime and return on investment.

Features / Technical specifications

• Product type: Roll-to-roll superwide format inkjet printer
• Series / Model family: Acuity Ultra R2 Series
• Maximum print width: up to 5 meters (available 3.2 m and 5 m models)
• Print speed: up to 402 m2/hr (4,327 ft2/hr)
• Printhead technology: industrial grayscale printheads, 3.5 picoliter drop size
• Color configurations: 6-color (CMYK LcLm), 6-color + white/varnish, 2 × CMYK
• Media thickness supported: 0.1 to 2.0 mm (0.004" to 0.08")
• Roll capability: 2-up or 3-up multi-roll potential
• Curing options: industrial UV curing and LED curing systems (LED versions available)
• Substrate handling: chilled vacuum table for thin/heat-sensitive substrates
• On-board features: backlighting for image checking; automatic nozzle spitting system
• Typical applications: billboards, signage, exhibition graphics, POS displays, backlit displays, high-end indoor graphics, graphic art
