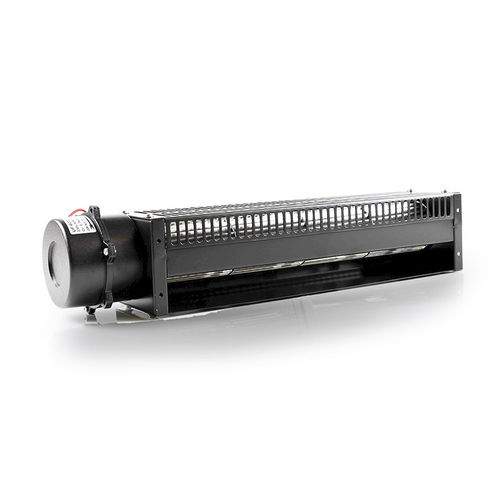

Wall fan UF6036 SERIESmixed-flowcoolingsteel
Add to favorites
Compare this product
Characteristics
- Installation
- wall
- Configuration
- mixed-flow
- Function
- cooling
- Material
- steel, plastic
- Air flow
5.5 m³/min, 6 m³/min
(194.231 ft³/min, 211.888 ft³/min)
Description
Frame: - Steel with black painting
Impeller: - Plastic & Aluminum
Bearing System: - Ball bearing or sleeve bearing
Motor: - Capacitor start-run or Shaded pole
Protection: - Impedance-Protected or Thermally-Protected
Insulation Resistance: - Above 100MΩ,DC 500V.
Dielectric Withstand Voltage - AC1, 500V (50/60Hz) one minute
Safety Approval: - CE, TUV. (UF9029 has UL, CUL approval)
Rated Voltage - 120 V - 230 V -
Frequency - 50/60 Hz - 50/60 Hz -
Input Power - 35/37 W - 35/37 W -
Rated Current - 0.33/0.33 A - 0.17/0.17 A -
Locked Current - 0.46/0.46 A - 0.22/0.22 A -
Speed - 2500/2800 RPM - 2500/2800 RPM -
Maximum Air Flow - 5.5/6 m3/min. - 5.5/6 m3/min. -
Maximum Air Flow - 195/212 CFM - 195/212 CFM -
Maximum Pressure - 5/7.5 mmH2O - 5/7.5 mmH2O -
Maximum Pressure - 0.2/0.3 InchH2O - 0.2/0.3 InchH2O -
Noise - 50/53 dB - 50/53 dB -
Weights - 2.1 kg - 2.1 kg
