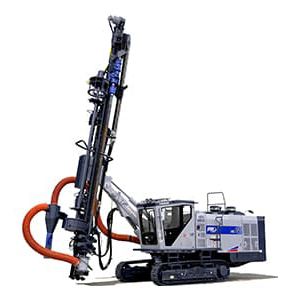

Multifunction drilling rig DCR22

multifunction drilling rig
multifunction drilling rig
Add to favorites
Compare this product


Drilling unit
Drilling diameter

Min.: 89 mm (4 in)

Max.: 165 mm (6 in)

Drilling depth

6 m (19'08")


Down The Hole This is a large-diameter drilling machine series featuring superior drilling ability. Mobility in small faces, the comfort of the cabin, ease of operation, and ease of maintenance have all been greatly improved. The hard work of drilling can be made easily and in a comfortable cabin. DCR22 Mass 25,600 kg Engine model CATERPPILLAR C13 Engine output 328 kW/2,000 min-1 Compressor maximum delivery pressure 2.5 MPa/1800 min-1(2.3 MPa/2000 min-1) Compressor maximum free air delivery 24.3 m3/min/1800 min-1 (27 m3/min/2000 min-1) Drill motor maximum torque 4.2 kN-m Bit range Φ 89~165 mm Rod length 6,000 mm


No catalogs are available for this product.
