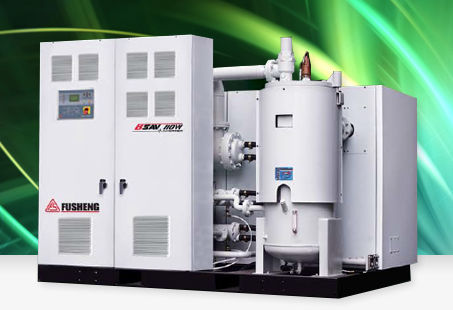

Screw compressor SAV22-185/BSAV110-220 seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-injected
- Application domain
- industrial
- Other characteristics
- air-cooled, water-cooled
- Pressure
Min.: 7.5 bar
(108.78 psi)Max.: 12.5 bar
(181.3 psi)- Flow
Min.: 1.3 m³/min
(45.91 ft³/min)Max.: 42 m³/min
(1,483.22 ft³/min)- Power
Min.: 22 kW
(29.91 hp)Max.: 220 kW
(299.12 hp)
Description
Product Features
High Efficiency
With highly precise CNC Machine Center to produce highly maching accuracy, screw coaxial, parallelism and rotor clearance. Adopting direct drive to reduce mechanical loss and return loss to the lowest level, giving out the highest compressing efficiency.
High Reliability
Fusheng compressors adopt best-designed patent notch. It has a low length-diameter ratio and small bending stress. The internal parts are greatly-precisely made with low rotation speed and long bearing service life, which the compressors are designed to be highly reliable.
Energy-saving
The operating cost is reduced by at least 30% through the FUZZY reflux control system of our exclusive variable-frequency controller. It regulates automatically based on the actual required situtation.
Catalogs
No catalogs are available for this product.
See all of Fusheng Industrial‘s catalogs
