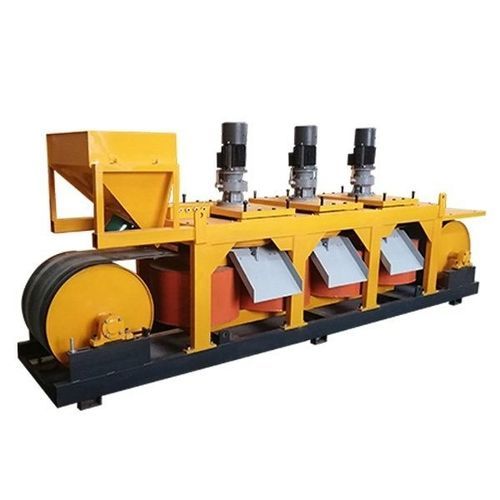

Magnetic separator RCDG series

electromagnetichigh-gradient magneticbelt

High gradient disc dry type Electromagnetic separator EJET`s high degree electromagnetic separator are specially design to clean micro iron or para-magnetic material for purification and concentration of dry products with powerful magnetic recovery. Description : The high degree of selectivity achieved by this rang of dry disc magnetic separators produces exceptionally clean magnetic fraction with high magnetic recovery specially design to remove micro iron or para-magnetic material(such as tin, tungsten, tantalum silica, sulfur dioxide, stainless steel ) from mineral and other dry material. Principle : Dry feed material (e.g.Tin, tantalum ore ) is discharged from a hopper with vibration feeding devices and adjustable gate . The even and Mon-layer material is evenly fed onto a thin conveyor belt that under the rotating high-intensity magnetic discs. Whilst underneath the magnetic discs, magnetic particles are attracted to the high-gradient magnetic zones and carried to the discharge chutes by the rotating discs . Scrapers that are mounted on each of the chutes ensure the total discharge of the extracted magnetic particles. Any feed material that is non-magnetic will pass under each of the three discs and discharge at the end of the conveyor. Structure : Typically,elements of a Magnetic Disc Separator will including the vibration feeding hopper ,conveyor belt motor, disc motors and coil circuits . feature up to three high-intensity electromagnetic discs, each set at a different height from a feed conveyor. The first disc will be set the furthest from the feed material, in order to extract only the most magnetically susceptible particles.
