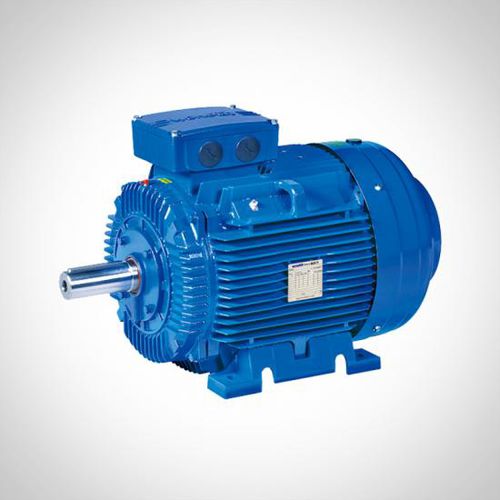

Asynchronous motor ZWE series

3-phase400 Vcast iron

PRODUCT DETAIL ZWE Series motors are high efficiency asynchronous induction motors with increased power. The motors provide equipment manufacturers and end users with higher output power while the frame size is smaller compared to IEC standard electric motors. The efficiency indicators are in line with IE2. Main product features: smaller size, less weight, and out standing appearance. The IE2 line offering high efficiency and low lifetime costs will be the basis for further Wonder development. The design of compact motors with optimized materials of construction offers a reduced frame size per output. For Wonder high efficiency motors, both solid and detachable feet are available. For WE and ZWE Series from frame 80-132 and 280 and above, the motors are with solid feet which provide resistant structure against vibration while detachable feet provide flexibility during installation with frame from 160-250. The maximum flexibility designed and supplied by Wonder guarantees the reduction of time cost of our customers. Main Tech Specifications: Frame Size: 160-315mm Output Power: 11-315kW Speed: 3000, 1500, 1000r/m Protection Class: IP55 or above Insulation Class: F or above Cooling Method: IC411/IC416 Industries: Water Treatment Marine, Onshore and Offshore Agriculture & Aquaculture Paper Milling Carpentry Energy Chemical & Metallurgy Construction & Infrastructure Transportation Applications: Pumps Motors Compressors Motors Ventilation Fan Motor Hydraulic Pressure Motors Mills Motors Vacuum Motor Blower Motors Elevators Motors Road Machinery Motors Paper Machine Motors Woodworking Machines Motors Crane Duty Motors Irrigation Motors Aquaculture Motors
