Conveyor furnace 1322

heat treatmentelectricgas

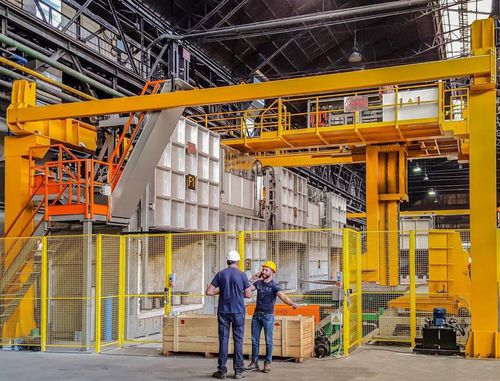

The heat treatment line is composed of 5 batch furnaces in nitrogen atmosphere with radiant tube heating elements. The line is designed to treat stainless steel wire rods and can perform various processes as: normalizing, austenitizing, annealing, solubilization, tempering, quenching in different fluids (water, polymer) and isothermal annealing with indirect air-cooling stations. The line is completely automatic with segregated working area. The load enters and exits the line through a motorized loading/unloading station. Maximum batch weight is 3 T treated up to 1.150 °C. The quenching tank has 4 Kaplan agitators and a water-cooling system, the total volume is 60 m³. Batch line components – 5 chamber furnaces in nitrogen atmosphere – 3 quenching tanks with agitators (1 water, 1 water/polymer and 1 for rinse) – 1 automatic loader (3 T capacity) – 1 forced cooling station – 2 motorized loading/unloading stations – 5 storage stations – Custom made supervision system ready for full integration with customer management system
