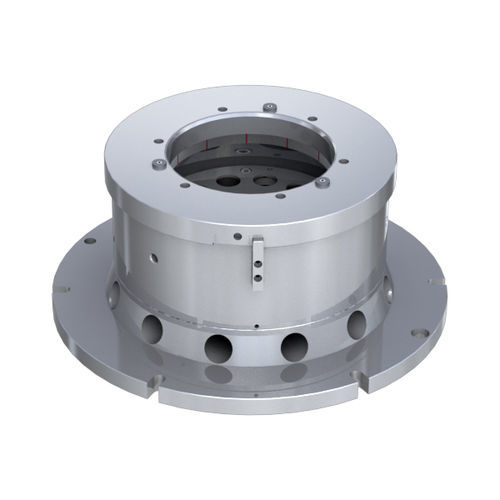

Clamping and fixture system

Product overview
Workholding systems for Power Skiving machines designed for the production of ring gears with internal gearing. Suitable for straight or helical teeth; modular design with Quick-Change interfaces to facilitate fixture changes and machine adaptation.

Compatibility
Configured for Gleason 600PS as the primary reference. Adaptable to Gleason 400PS and 300PS; possible adaptation to other manufacturers' machines after engineering modifications.

Loading
Designed for manual or automatic loading systems; compatible with automated handling and robotized feed systems.

Applications

• Power Skiving processes for internal ring gears
• Production of internal gears for epicyclic/planetary transmissions
• High-volume and batch manufacturing environments

Characteristics / technical specifications

• Application: production of ring gears with internal gearing
• Tooth type: straight or helical
• Primary machine: Gleason 600PS
• Adaptable to: Gleason 400PS, Gleason 300PS
• Change system: Quick-Change
• Loading: manual or automatic
• Adaptability: possible modifications for other machine brands
