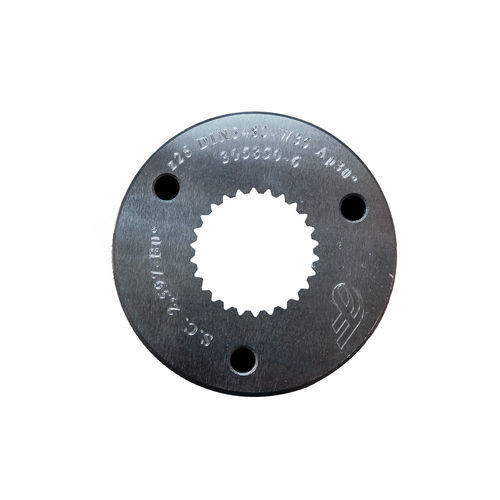

Ring gauge

Product overview
Splined ring gauges to inspect tooth thickness on external splined components. Available with parallel, involute or serration flanks and in straight or helical geometries. Configurable as Go / No-go; materials offered include hardened steel or Powder Metallurgy (PM). Diameters available on request up to 1000 mm.

Features

• Go or no-go configuration
• Materials: steel or PM
• Standard profiles: DIN, ISO, ANSI, JIN
• Custom and special profiles available on request
• Optional coatings: TiN, TiAlN
• Available up to 1000 mm diameter on request
• Supplied with inspection certificate

Characteristics / technical specifications

• Function: inspection of tooth thickness on external splined components
• Flank types: parallel, involute, serration
• Geometry: straight or helical
• Configuration options: Go / No-go
• Materials: hardened steel or Powder Metallurgy (PM)
• Profiles supported: DIN, ISO, ANSI, JIN and custom profiles
• Maximum diameter available on request: up to 1000 mm
• Optional surface treatments: TiN, TiAlN (on request)
• Documentation: supplied with inspection certificate
