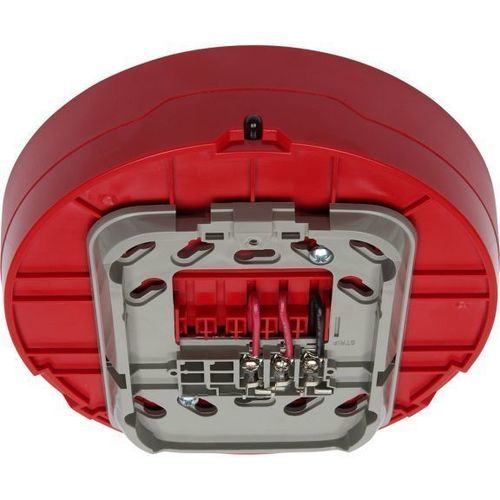

Beacon base plate SWIFT®

Overview
The SWIFT Ceiling AV Base is designed for use with compatible System Sensor L-Series AV notification appliances to meet a wide range of commercial notification requirements. The AV base provides power for audio and visual signals and supports wireless communication with the Fire Alarm Control Panel (FACP). The L-Series notification appliance mounts directly to the wireless AV base, allowing flexibility in color, placement and signal output. Power is supplied by two sets of four batteries: one set for wireless communication, the other for the audio/visual notification appliance. The wireless portion has a UL-listed battery life of at least 2 years; AV battery life depends on activation duration and signal output level. The AV base also boosts output voltage to support 24 VDC options on connected devices.

Features & Benefits

• Wireless installation
• Class A mesh network
• Addressable code wheels
• Commercial notification applications
• Frequency hopping
• Bi-directional communications

Certifications

• UL 464
• UL 1638
• UL 1971
• ULC S525
• ULC S526

Technical specifications

• Compatibility: Supports System Sensor L-Series notification appliances (mounted directly to wireless AV base)
• Power: Two sets of 4 batteries (one set for wireless communication, one set for audio/visual signals)
• Wireless battery life (wireless portion): UL listed for at least 2 years
• AV battery life: Dependent on activation time and output level of audio/visual signal
• Output: AV base boosts voltage to support 24 VDC options on connected devices
• Network: Class A mesh, frequency hopping, bi-directional communications
• Intended use: Commercial notification installations
• Brand (reported on page): Farenhyt; Gamewell-FCI; NOTIFIER
• Product reference on page: P1922514-CEILING
• Product ID (page data attribute): 1695161
