Devised with the optimal characteristics to store any type of good, even those who require the most demanding conditions
The Gaptek storage modules are high-quality prefabricated buildings that can be adapted to the needs of any type of organization around the world.

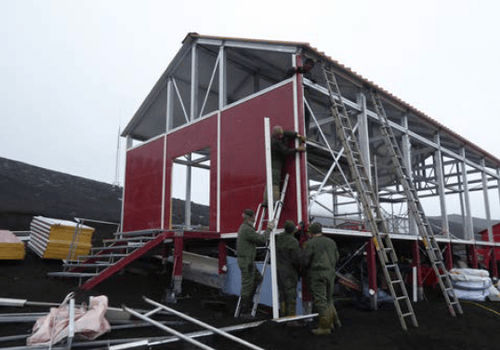

Gaptek storage modules are designed to withstand the most extreme weather conditions. A clear example is our warehouse located in Antarctica, which is resisting the most adverse weather conditions day after day.
Thanks to the application of the modular architecture principles, the storage modules are assembled on-site with prefabricated materials. The lightness of those materials allows them to be efficiently transported, even to the world’s most remote areas.
Technical specifications
Dimensions: Modules of minimum 2,40m x 2,40m with unlimited longitudinal scalability and up to 3 floors
Assembly time: Depending on dimensions
Construction System: Gaptek Modular
Required cementation: No (recommended)
Structure:
Structure assembly: Mechanical joints
Material: High resistance alloy aluminum AW-6082-T6
Warranty: 20 years
Standard Resistances:
Wind Standard: 104 km/h
Fire Standard: REI30
Snow Standard: 0.5 KN/sqm
Climate conditions: -20 ºC to 55ºC
Earthquake Standard: 0.1 g
Envelope: Insulating panel
Certifications:
ISO 9001
UNE-EN ISO 14001 in Environmental Management
UNE-ISO/IEC 27001 in Information Security Management
CE Marking in all materials, including EN-1090 in relation to steel and aluminum structures
