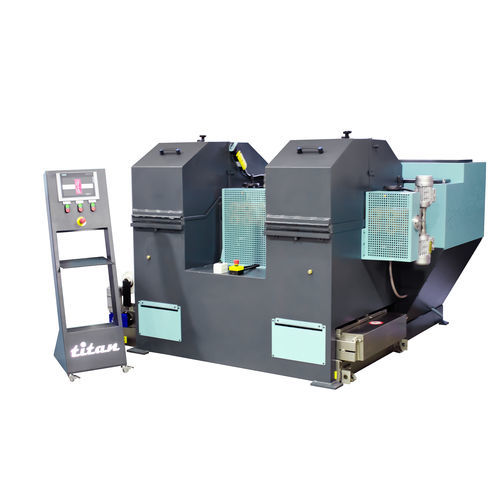

Orbital grinding machine LT TITAN

for tubesfor round barsfor round tubes

Thanks to an innovative device consisting of pressure rollers in combination with powerful motors, our planetary grinding machines for wire, bars and tubes with abrasive belts orbital system type LT TITAN enable high productivity performances with feed rate up to 120 mt/minute for each head. The machine has been engineered for perfect integration into automatic production lines. This new device for abrasive belts pressure control enables the LT TITAN polishing machine a high stock removal up to 1 mm thickness on the wire diameter. This new technology can be used for both dry and wet processing of diameters from 1 mm to 120 mm on any type of metal, ferrous or non-ferrous. - Diameter capacity (D): 1-120 mm (5" max) - Belt size (S): 2050 mm - Belt width (L): 150 mm - Disc motors: 2 x 5.5 kW - Belt motors: 2 x 30 kW - Feed motors: 8 x 0.18 kW - Feed speed: 10-240 m/min - Machine weight: 3500 kg - Dimensions: H = 185 cm, P = 238 cm, L = 238 cm Technical Specifications / Features: - Innovative pressure roller system for high productivity - Integration-ready for automatic production lines - High stock removal: up to 1 mm on wire diameter - Suitable for dry and wet processing - Processes diameters from 1 mm to 120 mm - Applicable to all metals (ferrous and non-ferrous) - Feed rate up to 120 m/min per head - Disc motors: 2 x 5.5 kW - Belt motors: 2 x 30 kW - Feed motors: 8 x 0.18 kW - Feed speed: 10-240 m/min - Machine weight: 3500 kg - Dimensions: H = 185 cm, P = 238 cm, L = 238 cm
