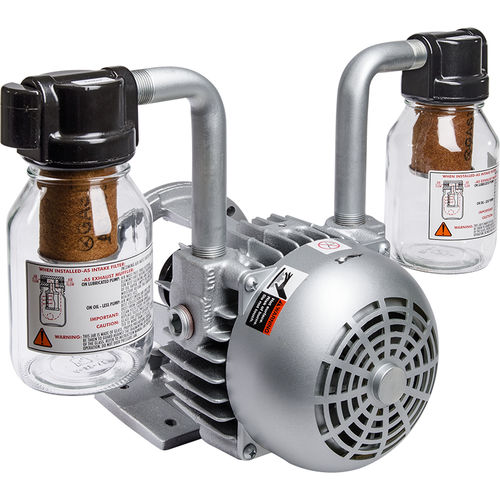

Rotary vane vacuum pump 2067 serieslubricatedsingle-stagefor laboratory
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- lubricated
- Number of stages
- single-stage
- Applications
- for laboratory, for medical applications
- Other characteristics
- air compressor
- Ultimate vacuum
Min.: 0 mbar
(0 psi)Max.: 65 mbar
(0.94 psi)- Flow rate
24 m³/h, 29 m³/h
(847.55 ft³/h, 1,024.13 ft³/h)
Description
Power 1 hp ( 0.75 kW )
Max Flow (50 Hz) 14.0 cfm ( 24.0 m3/h )
Max Flow (60 Hz) 17.0 cfm ( 29.0 m3/h )
Max Pressure (50 Hz) 15 psi ( 1 bar )
Max Pressure (60 Hz) 15 psi ( 1.0 bar )
Max Vacuum (60 Hz) 28.0 in-Hg ( 65.0 mbar abs )
Weight 55 lbs ( 25 kg )
Min Temperature 33.8 °F ( 1 °C )
Max Temperature 104 °F ( 40 °C )
Catalogs
No catalogs are available for this product.
See all of GAST‘s catalogsOther GAST products
