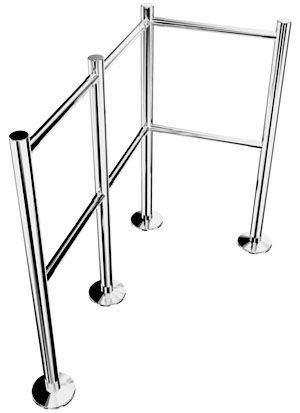

Pedestrian barrier SW1

fixedsteel mesh

PURPOSE This railing system is used in areas where directing of pedestrian traffic is necessary. The railings are typically used together with such elements as turnstiles, swing gates and other pedestrian traffic control devices. These railings are suitable for both indoor and outdoor installations. SW1 railing system is not to be used as safety railings e.g. on the balcony or in staircase. CONSTRUCTION Railing elements are made of ground finish stainless steel 1.4301 (EN 10088) Posts are made of ø50mm tubular elements with ground sockets and ø156mm cover plate. Posts are equipped with sockets for crossbars fitting at heights of 509 mm and 959 mm and with cover blanks imitating ground stainless steel. Crossbars are made of ø30mm tubular elements tucked into the socket in the post. ASSEMBLY METHOD Ground sockets have 4 fixing slots. It is recommended to assembly the posts using adhesive anchors e.g. of HILTI company. Crossbars are assembled by trimming to appropriate dimension (length), drilling of assembly slots and riveting using ø4mm rivets after placing of crossbars in appropriate sockets. Note! Adjusting of crossbars to desired dimension and drilling of slots in crossbars to be made at assembly premises.
