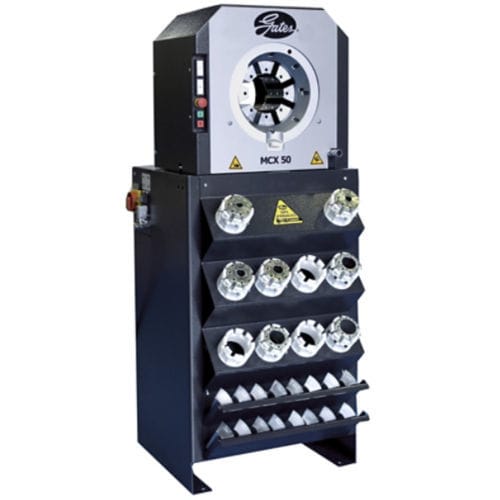

Hydraulic hose crimping machine MCX series

automatichydraulicportable

Product Overview
Gates MCX crimpers simplify safe, fast and efficient assembly of hydraulic hoses and couplings. Custom-designed to work with a defined range of Gates hoses and couplings, they produce factory-quality assemblies compliant with European Directives and international standards. Field and workshop variants provide enhanced operator safety for workshops, mobile service operations and on-site crimping.

Key points

• Easy-to-use design ensures fast, comfortable handling and integrates into the MCX crimper programme.
• Electrical-driven crimpers include a built-in die storage rack for organised, easy access to dies.
• Grease-free operation lowers maintenance costs thanks to the self-lubricating slide bearing system.

Features and Benefits

• Unique self-lubricating slide bearing eliminates metal-to-metal abrasion between master dies and the crimper head, reducing friction by 20%.
• Field service models are portable, with a detachable die storage case, robust handles and protective rubber layers.
• Ergonomic design improves productivity and facilitates approval by Health & Safety authorities.
• No greasing required, providing a safer and cleaner working environment.

All Parts (Product # - Description)
Product # | Description
748019182 | MCX25-12V
748019183 | MCX25-220V
748019184 | MCX25-380V
748019185 | MCX30-12V
748019187 | MCX30-380V
748019235 | MCX30-220V-60Hz USA version
748019236 | MCX50-380V
748019181 | MCX20-HP
748019230 | HAYL MCX50-440V 60Hz
748019186 | MCX30-220V

Technical specifications

• Series / Model family: MCX Crimpers
• Application: Assembly and crimping of hydraulic hoses and couplings
• Design: Custom-designed for a defined range of Gates hoses and couplings to produce factory-quality assemblies
• Compliance: Conforms to relevant European Directives and international standards
• Lubrication: Self-lubricating slide bearing system — grease-free operation
• Portability: Field service variants are portable with detachable die storage case and durable handles
• Ergonomics & Safety: Ergonomic design to improve productivity and workplace safety
• Electrical variants: Multiple voltage configurations available across product variants (12V, 220V, 380V, 440V, specific USA 60Hz versions)
