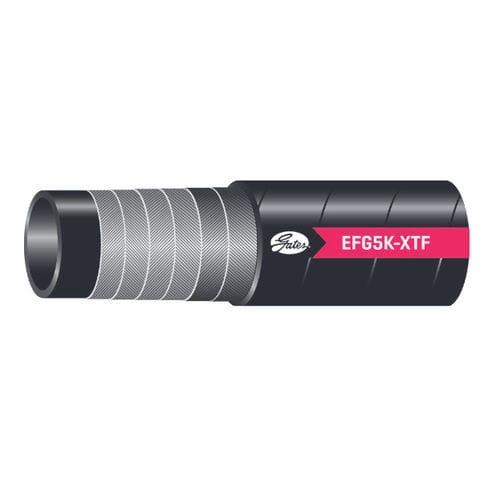

Spiral wire hose EFG5K-XTF series
hydraulichigh-pressuresynthetic

spiral wire hose
spiral wire hose
Add to favorites
Compare this product

Characteristics

Use
hydraulic
Applications
high-pressure
Material
synthetic, stainless steel
Other characteristics
abrasion-resistant, standard, special, spiral wire
Inner diameter

Max.: 1.25 in

Min.: 0.5 in

Outer diameter

Max.: 1.97 in

Min.: 0.8 in

Temperature

Max.: 250 °F (121.111 °C)

Min.: -40 °F (-40 °C)

Description

EFG5K-XTF Spiral Wire Hose - 350 Bar - XtraTuff® Cover Recommended for extremely high pressure and high impulse hydraulic applications. EFG5K-XTF is designed to meet or exceed all requirements of ISO 18752 Grade D and SAE100R13 specifications and performance requirements of EN 856 4SH (-16 and -20), EN 856 4SP (-10, and -12), EN 856 R13, and ISO 3862 Type R13 (-12, -16, -20, -24, -32). Recommended Couplings: GlobalSpiral™ Couplings (-6 through -20), GlobalSpiral™ MAX Pressure Couplings (-24 and -32), Stainless Steel S Couplings. EFG5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids. Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii (except -32). Features and Benefits With the Gates special XtraTuff® cover which offers 25 times the abrasion resistance of the standard EFG5K cover as per ISO 6945. Meets or exceeds performance requirements of EN 856 4SP (-10 to -32) and EN 856 4SH (-20 to -32). -6 to -20 validated with GlobalSpiral™ ; -24, -32 with GlobalSpiral™ Maximum. Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure. EFG5K-XTF MegaSpiral™ is rated at 1/2 bend radius of SAE 100R13. Meets Flame Resistance Acceptance Designation MSHA 2G. Type approvals: DNV, GL, LR, BV and ABS. 5000 PSI constant pressure for all ID's. Temperature Range: -40°C to +121°C -40°F to +250°F Size: 3/8" to 1-1/4".
