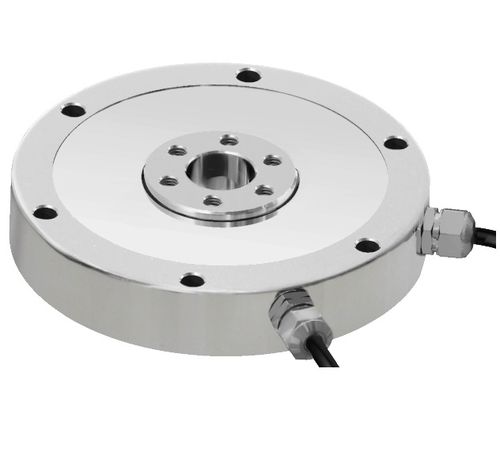

Compression force sensor T550

2-axistorqueIP66

Features & Applications - Compression & Torque Biaxial Sensor - Interference errors of each signal is small - Low profile, easy to install - Dimension could be Customized - Used for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system Specifications Technique Capacity（N/N.m） F: 20/30/50/100/200/500/1000/2000N M: 1/2/3/5/10/20/30/50N.m Rated output 1.0±10%mV/V Zero balance ±2%F.S. Non-linearity 0.1%F.S. Hysteresis 0.1%F.S. Repeatability 0.1%F.S. Interference error 0.2%F.S. Creep(30min) 0.05%F.S. Temp.effect on output 0.05%F.S./10℃ Temp.effect on zero 0.05%F.S./10℃ Input impedance 350±10Ω Output impedance 350±10Ω Insulation ≥5000MΩ/100VDC Recommended excitation 5~15V Maximum excitation 20V Compensated temp range -10~40℃ Operation temp range -20~75℃ Safe overload 150%F.S. Ultimate overload 200%F.S. Cable size Φ4×4000mm Weight approx. 0.6kg IP Class IP66
