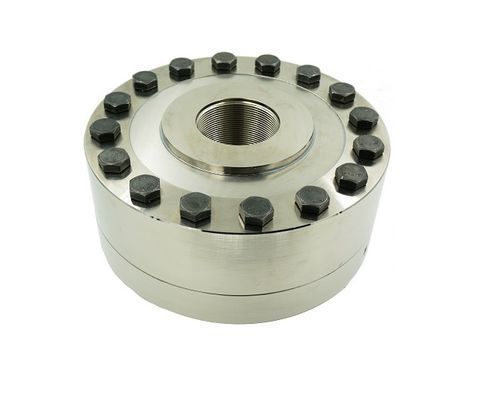

Tension/compression load cell TH312L
pancake typesteelnickel-plated

tension/compression load cell
tension/compression load cell
Add to favorites
Compare this product


Characteristics

Type
tension/compression
Form
pancake type
Other characteristics
steel, nickel-plated
Rated load

Max.: 800 t (881.85 us ton)

Min.: 100 t (110.23 us ton)

Description

Features & Applications -Pancake type load cell -Alloy steel -Tension and compression application -Mainly used for testing machine , truck scales,hopper scale and industrial measuring system -Customize other capacity SpecificationsTechnique Capacity100,200,250,300,400,500 600,800t Rated output2.0±1%mV/V Zero balance±1% F.S. Non-linearity0.1%F.S. Hysteresis0.1%F.S. Repeatability0.1%F.S. Creep(30min)0.05%F.S. Temp.effect on output0.05%F.S./10℃ Temp.effect on zero0.05%F.S./10℃ Input impedance780±20Ω Output impedance700±10Ω Insulation≥5000MΩ/100VDC Recommended excitation5~15V Maximum excitation20V Compensated temp range-10~40℃ Operation temp range-10~70℃ Safe overload150%F.S. Ultimate overload200%F.S. Cable sizeφ5×6000mm IP ClassIP66

Catalogs

TH312L
TH312L
1 Pages
