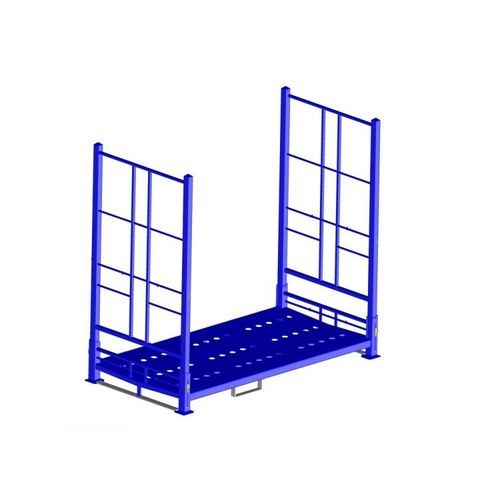

Tire pallet E3

metalindustrialtransport

In the tyre industry, our pallet system for storing and transporting tyres has successfully asserted to become the market leader. The original one is produced by us! The widespread Goodyear pallet (E3 pallet) was developed byGAWRONSKI together with “Goodyear” for the purpose of the most practicable application in practice. It must be optimal for the transport of tyres, be flat and robust for the return transport of empties as well as extremely stable for space-saving stacking of the pallets in warehousing. Our original pallet has an empty weight of 185-190 kg and is designed for a total weight of 1,000 kg. Our specifications are your guarantor for static, strength and long durability during rough warehouse operation. In most warehouses, 4 pallets are stacked on top of each other. The “Goodyear pallet” is designed for 5-fold stacking and confirmed by the TÜV as well as independent testing authorities. Whether with of without insertion bars: The E3 pallet offers you maximum stability and flexibility. • Dimensions: 2395x1249x2200 mm • Dead weight: approx. 185 kg • max. load (surface load): 1000 kg • Stacking: 4-fold (interior area) • Empty pallet stacking: 1 + 19-fold • Warehouse capacity (rick rack): up to 120 tyres • Steel grades: Killed steel S 235 JR acc. to EN 10027 • Painting: In 2 layers • 1st layer – prime coat • 2nd layer – top coat RAL 5002 blue silk-matt (abrasion-resistant) • max. static load of the corner column: Approx. 4,200 kg (1,050 kg / column)
