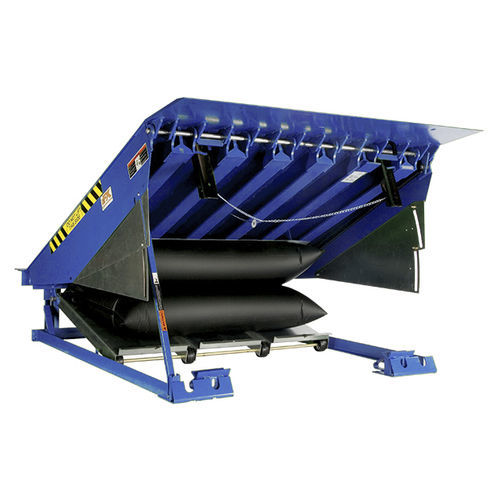

Air-operated dock leveler

swing-lip

The aFX® air-operated levellers offer you the advantages of a simple but safe and worldwide proven functional principle. Their minimal wear and tear and almost maintenance-freedom results in an above-average service life as well as an excellent price-performance ratio. Our air-operated GAWRONSKI levellers are based on an amazingly simple principle, but offer you sensational advantages: • The air cushion made from reinforced and robust special fabric below the leveller enables easy raising and lowering of the leveller. • Compared with other systems, wear and tear clearly reduces, with the service life significantly extending. • Due to the patented “Air Defense” System, all impacts by forklifts driving over it are cushioned, whereby the mechanical stress of the support arm disproportionately decreases. • At the outset, this system requires less moving parts than conventional loading bridges and is accordingly extremely simple and cheaper to maintain than comparable hydraulic levellers. • The exclusive SafeTFrame® Design (1) • airDefense® -System- effective protection against impacts and sagging up to 27,000 kg due to additional support arms (2) • exclusive GRAVITY Lip™ System (3) • Airbag lifting system with a large volume and low pressure (4) • loading flush with the rear due to lowering below the ramp level • almost full maintenance-freedom • welded-on lip joint seat (5) and lambda carrier structure (6) • 16″ / 40.6 cm standard lip
