Mobile concrete pump CONCRETEMANfor constructiondieselpiston
Add to favorites
Compare this product
Characteristics
- Configuration
- mobile
- Applications
- for construction
- Type of fuel
- diesel
- Other characteristics
- piston, wear-resistant, and shotcrete
- Output
Max.: 12 m³/h
(423.8 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pumping pressure
35 bar
(507.6 psi)- Weight
1,350 kg
(2,976 lb)
Description
Overview

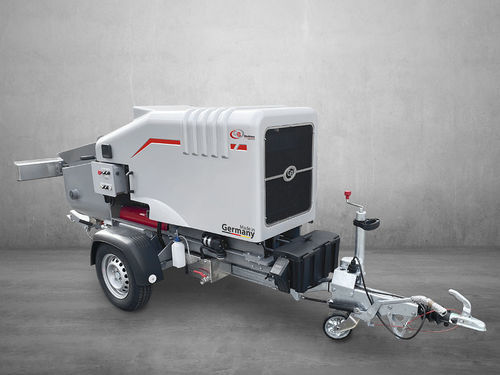

The compact, lightweight concrete pump CONCRETEMAN from GB Machines (Schloß Holte) handles fine concrete, floor screed and shotcrete up to a grain size of 16 mm. Its reduced dimensions and weight simplify transport and positioning on construction sites.
Fast piston replacement
The CONCRETEMAN is designed for quick exchange of four different piston sizes. Pistons and cylinders can be replaced easily and rapidly by the operator, reducing downtime.
High operational flexibility
Compact shape, low weight and fast assembly/disassembly enable use in confined or difficult-to-access areas on site, increasing application versatility.
Quality components
The unit is powered by a 3-cylinder Hatz diesel engine with low fuel consumption. Alternating rubberised delivery pistons are manufactured from specially hardened material to minimize wear. Hard-chrome plated disc pistons also exhibit low wear.
Technical specifications
The compact, lightweight concrete pump CONCRETEMAN from GB Machines (Schloß Holte) handles fine concrete, floor screed and shotcrete up to a grain size of 16 mm. Its reduced dimensions and weight simplify transport and positioning on construction sites.
Fast piston replacement
The CONCRETEMAN is designed for quick exchange of four different piston sizes. Pistons and cylinders can be replaced easily and rapidly by the operator, reducing downtime.
High operational flexibility
Compact shape, low weight and fast assembly/disassembly enable use in confined or difficult-to-access areas on site, increasing application versatility.
Quality components
The unit is powered by a 3-cylinder Hatz diesel engine with low fuel consumption. Alternating rubberised delivery pistons are manufactured from specially hardened material to minimize wear. Hard-chrome plated disc pistons also exhibit low wear.
Technical specifications
- Drive: 3-cylinder diesel engine
- Delivery rate: up to 12 m³/h
- Delivery pressure: 35 bar (over 40 bar possible)
- Grain size: up to 16 mm
- Strokes per minute: up to 30/min
- Outlet: 4.5 inch (DN100)
- Weight: 1350 kg
- Piston graduations: 4
